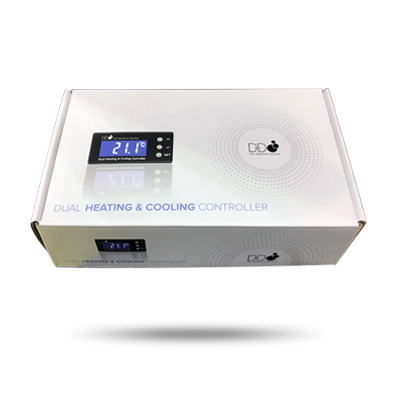

D-D Dual Heating & Cooling Controller
The Dual Digital Temperature Controller is designed to allow precise control of the temperature in an aquarium and has 2 modes which allow control of both heating and cooling at the same time.
- Double mains power socket ? one power socket for heater control and the other for fan/chiller control.
- Display with temperature sensor ? used to set and display temperature and alarms and measure temperature.
- The plastic coated temperature sensor is waterproof and suitable for use in a marine aquarium.
Features
- Plug and play - no wiring required.
- Heating/cooling can be set to within 0.3 deg C of target temperature e.g. Control Range of 24.7 - 25.3 deg C (with set temp of 25 deg C).
- Audible and Visual Alarm Function e.g alarm sounds if temp below 24 deg C or above 26 deg C (with alarm set to 1 deg C).
- 2m long plastic coated temperature sensor with mounting suction cup.
- Heating Control (resistive load, such as heater) max 1600W.
- Cooling Control (inductive load, such as a chiller) max 600W.
- Display: Back lit blue LCD ? permanently lit.
- Power off memory function
- Makes an ideal control platform for our Schego Titanium aquarium heater
Specifications
Size:
- Display panel size: 95mm x 50mm x 15mm
- Control socket size: 160mm x 70mm x 45mm
Technical Parameters:
- Temperature control range: 16 - 40 deg C
- Temperature differential setting range 0.3 ? 16.0 deg C
- Alarm function range: 0.5 ? 5 deg C of set point temperature
- Resolution: 0.1 deg C
- Accuracy: ?1 deg C (30 - 50 deg C)
- Power supply: 220VAC?10%, 50/60Hz
- Operating Humidity range: 20% - 85%
- Power consumption: ?3W
- Product Code TC125
